1. Executive Briefing: Demystifying CAM Technology & Biomechanical Fundamentals
In modern trauma orthopedics and post-surgical rehabilitation, the Orthopedic cam walker boot (Controlled Ankle Motion boot) has virtually replaced traditional plaster casting for stable lower-extremity fractures, severe sprains, Achilles tendon ruptures, and plantar fascia injuries. For global healthcare buyers, selecting the right walker boot manufacturer requires a precise understanding of biomechanical kinetics, structural material composition, and clinical efficacy.
The primary engineering goal of a CAM walker boot is to immobilize the talocrural and subtalar joint complexes while allowing controlled weight-bearing through a specialized rocker bottom sole. This ergonomic curvature alters the ground reaction force (GRF) vectors during heel-strike and toe-off phases of gait, drastically reducing peak plantar pressure on forefoot structures and distal tibial segments.
Key Biomechanical Principles of High-Performance Cam Walker Boots
- Rocker Sole Dynamics: Reduces sagittal plane ankle motion requirements while facilitating natural fluid gait progression.
- Rigid Upright Stabilization: High-tensile 6061-T6 aluminum or high-impact polypropylene (PP) side uprights absorb lateral shearing forces.
- Targeted Pneumatic Compression: Dual-air cell bladders conform anatomical contours to minimize localized edema and enhance proprioceptive feedback.
- Plantar Pressure Offloading: Multi-density EVA insoles distribute axial loads across the entire plantar surface.
At BHW Medical Equipment Co., Ltd., our R&D team collaborates with orthopedic surgeons and biomechanical engineers to refine every shell contour, strap placement, and inflation mechanism. Whether supplying private-label brands across North America or tender-based medical networks across Europe, our products adhere strictly to rigorous clinical compliance and structural integrity testing.
2. Product Showcase: Technical Specifications & B2B Portfolio
To serve diverse clinical settings—ranging from trauma emergency departments to post-op physical therapy clinics—BHW Medical Equipment Co., Ltd. manufactures a full spectrum of orthopedic cam walker boots. Below are our core recommended models designed for high-volume B2B distribution:

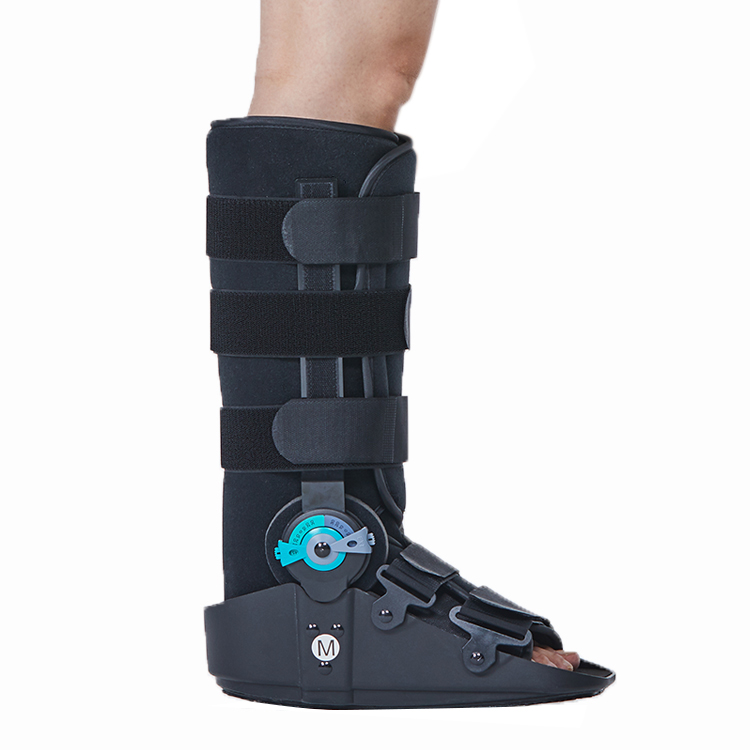

Pneumatic High-Top Cam Walker Boot
Engineered with integrated pneumatic air pumps and dual-side bladders for customized compression. High-profile rigid uprights deliver maximum stability for Grade II/III ankle sprains, stable fibular/talar fractures, and post-Achilles repair rehabilitation.
- Shell Material: High-impact PP reinforced plastic
- Upright Material: Anodized 6061-T6 Aluminum
- Inflatable Bladder: Medical TPU dual-chamber
- Available Sizes: S, M, L, XL (Universal L/R)
Low-Profile Short Cam Walker Boot
Designed specifically for forefoot, mid-foot, and metatarsal injuries, Lisfranc trauma, and hallux valgus post-op correction. The shortened height improves patient compliance during daily mobility while offering superior calcaneal stabilization.
- Profile Height: 11-inch Low Profile
- Sole System: Non-skid TPR anti-slip tread pattern
- Liner Fabric: Breathable mesh foam with plush tricot
- Options: Standard or Pneumatic Air Airbag
ROM Hinged Range of Motion Cam Boot
Features precision goniometer hinges with adjustable plantarflexion and dorsiflexion stops (0° to 45° increments). Essential for staged post-surgical recovery following complex ligament reconstructions and tendon repairs.
- Hinge Adjustment: 0°, 7.5°, 15°, 22.5°, 30°, 37.5°, 45°
- Lock Mechanism: Quick-adjust pin-lock system
- Side Bars: Dual-hinge heavy-duty aluminum
- Paddings: Washable foam liner with foam pad set
Pediatric & Heavy-Duty Offloading Boot
Specialized line including ultra-lightweight pediatric boots with shock-absorbing shells, as well as bariatric offloading boots equipped with removable hex-pad insoles for diabetic foot ulcer management.
- Pediatric Sizes: Child Small, Medium, Large
- Offloading Insole: Removable peg-insole EVA system
- Weight Limit: Tested up to 180 kg (Bariatric model)
- Custom Color: Available upon request
Technical Specification Matrix for Engineering & Sourcing Evaluation
Below is a comprehensive technical evaluation matrix comparing BHW Medical’s standard vs. air-pneumatic orthopedic cam walker boot configurations:
| Specification Parameter | Standard Rigid Cam Walker | Air Pneumatic Cam Walker | ROM Hinged Cam Walker |
|---|---|---|---|
| Primary Indication | Mild/Moderate sprains, hairline fractures | Severe sprains, post-op trauma, edema control | Achilles repair, ligament reconstruction |
| Upright Construction | Reinforced Composite Nylon / Aluminum | Anodized 6061-T6 Aircraft Aluminum | Dual Stainless Steel / Alloy ROM Hinges |
| Pneumatic Air System | Non-Pneumatic (Foam Padding Only) | Integrated Push-Button Pump & Valve | Optional Integrated Air Bladder |
| Rocker Bottom Geometry | Dual-density EVA / Anti-slip TPR | Low-profile biomechanical rocker sole | Engineered roll-over rocker sole |
| Weight (Size Medium) | Approx. 850 grams | Approx. 1,050 grams | Approx. 1,220 grams |
| Biomechanical Edema Control | Basic Static Compression | Dynamic Intermittent Hydrostatic Pressure | Variable Angle Static Immobilization |

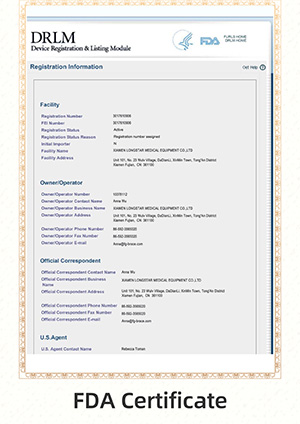

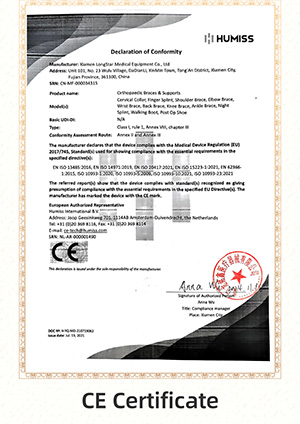

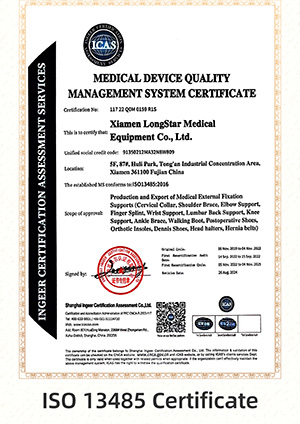

| Regulatory Approvals | CE, FDA 510(k) Exempt, ISO 13485 | CE, FDA Class II Registered, ISO 13485 | CE, FDA Class II Registered, ISO 13485 |
3. Future Global Procurement Trends in Orthopedic Bracing (2025–2030)
The international supply chain for orthopedic devices is undergoing rapid transformation. Global procurement teams can no longer rely solely on basic cost-per-unit metrics. To maintain competitive advantage, procurement officers must evaluate suppliers through the lens of emerging market shifts:
4. Industry Technological Trends: Next-Gen Cam Walker Innovations
As a forward-looking manufacturer, BHW Medical Equipment Co., Ltd. invests continuously in material science and ergonomic structural innovations. Key technical advancements reshaping the manufacture of the Orthopedic cam walker boot include:
A. Advanced Polymer Blends & Weight Reduction
Traditional walking boots relied heavily on heavy steel side bars and thick PVC plastics. Modern manufacturing utilizes high-strength, lightweight polyamides injected with short glass fibers. This yields a frame that is 20% lighter while maintaining superior impact resistance and flexural modulus under dynamic loads.
B. Antimicrobial & Moisture-Wicking Textiles
Patient compliance drops significantly when liners cause heat buildup, skin maceration, or foul odors. We integrate 3D spacer mesh fabrics treated with non-toxic, skin-friendly silver-ion antimicrobial coatings. This maintains a cool microclimate inside the boot and reduces risk of secondary dermal infections.
C. Smart Pressure-Gauge Air Pumps
Next-generation pneumatic boots feature visual pressure indication valves, allowing physical therapists and patients to maintain exact pre-set pressure levels (e.g., 20–30 mmHg) to optimize peripheral venous return without restricting capillary circulation.
5. Why Choose BHW Medical Equipment Co., Ltd.? Enterprise Capabilities
Founded with a commitment to clinical excellence, BHW Medical Equipment Co., Ltd. has grown into a leading exporter of medical braces and orthopedic supports. Operating out of our modern facility in Xiamen, China, we offer end-to-end manufacturing solutions tailored to international business partners.
