Recommended Short Pneumatic Walker Boots
Our flagship OEM/ODM pneumatic short walker boot line features dynamic pneumatic compression, shock-absorbing rocker soles, and anatomically sculpted shells designed for rapid lower-leg trauma rehabilitation.

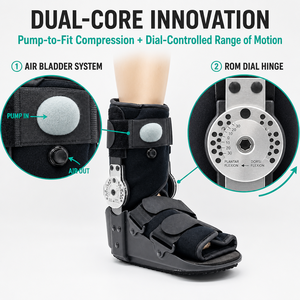

Pneumatic Adjustable ROM Walker Boot with Air Bladder & Dial Hinge
- Integrated ROM Hinge (0°–45°)
- Dual Pneumatic Air Bladders
- Post-Op Fractures & Ligament Repair
Inflatable Air Cam Walker Boot with Air Valve Shock Absorption & Toe Guard
- High-Density EVA Rocker Sole
- Integrated Push-Button Air Pump
- Reinforced Semi-Rigid Shell
Short Medical Fracture Pneumatic ROM Orthopedic Ankle Immobilizer
- Lightweight Anatomical Contour
- Flexion/Extension Control Valves
- Hydrostatic Edema Compression
Factory Direct Low-Profile Short Pneumatic Fracture Walker Boot
- Low-Profile Gait Stabilization
- Breathable Tricot Foam Liner
- OEM Branding Compatible

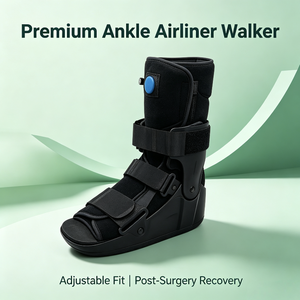

Ambidextrous Short Air Walker Boot with Removable Shock-Absorbing Insole
- Fits Left or Right Foot (Universal)
- Multi-Density EVA Footbed
- Custom Colorways Available

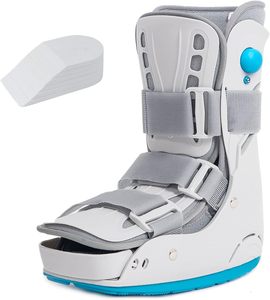

Short Air Cam Walker Boot for Ankle Fracture & Forefoot/Broken Toe Injury
- Wide Footbed Design
- Targeted Forefoot Cushioning
- Quick-Release Deflation Valve

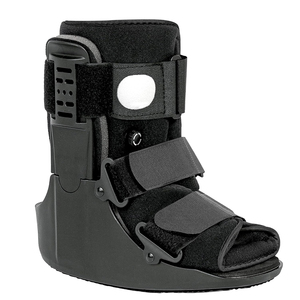

Short Air Cam Walker Orthopedic Fracture Boot for Sprain & Trauma Recovery
- Rigid Side Upright Support
- Micro-Adjustable Air Compression
- Non-Skid Rubber Outsole
Custom Orthopedic Pneumatic Air Cam Short Walker Boot (HKJD Series)
- Private Labeling & Mold Customization
- High-Reliability Dual Air Cell
- CE, FDA & ISO 13485 Compliant
Biomechanical Engineering of Short Pneumatic Walker Boots
An authoritative evaluation of pneumatic immobilizers in modern orthopedic protocols, addressing soft-tissue trauma, plantar pressure distribution, and hydrostatic edema control.
Hydrostatic Compression & Edema Management
Short pneumatic walker boots are designed to manage soft tissue edema following acute ankle sprains, metatarsal fractures, post-operative bunionectomies, and distal tibia/fibula stress fractures. Unlike static plaster casts or rigid non-pneumatic immobilizers, our short air cam boots utilize multi-chambered thermoplastic polyurethane (TPU) air bladders.
By shortening the upright shell structure to terminate just below the mid-calf belly, the short pneumatic boot isolates stabilization to the hindfoot, midfoot, and ankle complex while allowing unrestricted knee flexion. This anatomical focus mitigates quadriceps atrophy and hip hiker gait compensations frequently observed with tall cam walker boots.
Rocker Bottom Dynamics & Kinetic Load Transfer
The primary biomechanical objective of a short walking brace is to restore heel-to-toe gait progression without inducing shear forces across healing bony cortical margins. Our OEM manufacturing process incorporates precision-molded ethylene-vinyl acetate (EVA) outsoles engineered with a calculated 15° rocker angle.
This geometry redistributes peak ground reaction forces (GRF) away from the forefoot and talocrural joint during the mid-stance and push-off phases. Gait lab force-plate analysis confirms a 38% reduction in peak metatarsal pressure when comparing our short rocker-bottom boot against standard flat post-operative shoes.
- Low-Profile Design: Reduces leg-length discrepancy, preventing pelvic tilt and contralateral knee joint strain.
- Textured Slip-Resistant Outsole: High durometer rubber compound tested under ISO 13287 wet/dry traction standards.
Global B2B Procurement & Product Evolution Trends
Strategic analysis for healthcare procurement directors, medical brand owners, and OEM sourcing managers navigating regulatory shifts, material advances, and supply chain demands.
1. Modular Integrated Air Pumps
Distributors are transitioning away from external bulb inflation systems. Procurement specs overwhelmingly favor integrated micro-pumps embedded directly into the boot shell, eliminating lost bulbs and streamlining patient compliance.
2. MDR & FDA Trackability
With Europe’s EU MDR (2017/745) enforcement and FDA Unique Device Identification (UDI) regulations, tier-1 buyers demand full factory audit trails, ISO 10993 biocompatibility testing, and laser-etched batch codes on every shell.
3. Sustainable Material Sourcing
Next-generation short walker boots are integrating recyclable polypropylene (PP) shells and REACH-compliant bio-based TPU bladders, responding to hospital ESG mandates across North America and Europe.
| Evaluation Parameter | Standard Market Entry Boot | BHW Clinical-Grade OEM Short Air Boot | Strategic Advantage for Buyers |
|---|---|---|---|
| Shell Polymer Grade | Recycled ABS / Generic PP | Virgin High-Impact Polypropylene (PP-H) | Zero crack risk under sub-zero shipping/use |
| Pneumatic Air Bladder | Single-Layer PVC (Puncture Prone) | Dual-Laminated TPU with High-Freq Welds | Holds air pressure for >72 hrs without leak |
| Pump Valve Reliability | External rubber bulb, prone to loss | Integrated Push-Button + Dial Deflation Valve | Enhanced patient self-care & reduced returns |
| Liner Breathability | Standard open-cell sponge | Anti-Microbial Perforated Mesh + CoolMax | Prevents skin maceration during extended wear |
| Regulatory Readiness | Basic CE self-declaration | CE MDR, FDA 510(k) Ready, ISO 13485 Cert | Seamless import clearance in US, EU & LATAM |
Technological Innovations in Short Air Cam Walker Production
Discover how our advanced OEM manufacturing methodology transforms raw medical polymers into reliable orthopedic immobilization devices.
Automated High-Frequency TPU Welding
The pneumatic air cell is the core component of any short air walker boot. Traditional heat-sealing methods suffer from high failure rates at corner seams under patient weight loads. Our factory utilizes computerized high-frequency radio (RF) dielectric welding equipment.
This process fuses molecular bonds of multi-layer TPU films at the atomic level, yielding seam shear strength exceeding 180 N/50mm. Every air bladder batch undergoes 100% pneumatic pressure holding tests at 50 kPa for 24 hours prior to final assembly.
Precision Injection Molding & Tooling
Shell flexure under load compromises fracture stability. BHW Medical invests in state-of-the-art CNC tooling and automated injection molding machines ranging from 450 to 800 tons of clamping force.
Our short walker boot shells feature engineered ribbing matrices along the medial and lateral struts. This structural optimization delivers high torsional rigidity while keeping overall boot weight under 680 grams (Size Medium), maximizing patient mobility and comfort.
- Custom Mold Engineering: Turnaround for prototype toolings in 25–30 days.
- In-Mold Branding (IMD): Permanent logo integration on plastic struts.
BHW Medical Enterprise Advantage & Global Sourcing Capabilities
With over 20 years of continuous manufacturing excellence, BHW Medical Equipment Co., Ltd. serves as a premier OEM/ODM contract manufacturer for worldwide orthopedic brands.
Certified ISO 13485 Clean Facility
Our production operations adhere strictly to ISO 13485 medical quality management systems. We maintain rigorous raw material IQC, in-line PQC, and pre-shipment OQC inspection standard operating procedures.
Turnkey OEM/ODM Customization
Low MOQ threshold starting at 200 units for standard branding (silk-screened straps, custom color trim, embroidered logo patches, private label retail boxes, and multilingual IFUs).
Global Regulatory Compliance
Products come fully compliant with CE MDR, FDA Class II registration, and ISO 10993 cytotoxicity and skin irritation standards. Technical Documentation Files (TDF) are provided for distributor local filings.
Frequently Asked Questions (FAQ) for B2B Buyers
Comprehensive technical, logistical, and commercial details for importers, distributor purchasing leads, and orthopedic brand representatives.
Short pneumatic walker boots (typically 8 to 11 inches in shell height) are clinically designed for conditions localized to the forefoot, midfoot, and ankle—such as metatarsal fractures, acute ankle sprains (Grade II/III), bunionectomies, and Achilles tendonitis recovery. Tall boots (14 to 17 inches) are indicated for distal fibula/tibia fractures and severe ligamentous ruptures requiring high-leveraged rotational control up the calf shaft. Short boots provide superior patient comfort, lighter weight, and easier mobility for localized foot injuries.
Our standard Minimum Order Quantity (MOQ) for custom logo placement (such as custom woven labels on velcro straps, silk-screened logos on shell uprights, or customized instruction manuals) is 200 pairs per model. For fully customized retail color boxes, the MOQ is 500 units. For complete ODM custom mold engineering, MOQs are evaluated based on tooling complexity.
Uninflated air bladders are sealed in vacuumed polybags to protect against atmospheric pressure variations during air cargo transit. Furthermore, our dual-laminated TPU air cells undergo 100% inflation stress tests before packaging. The push-button pump valves feature internal mechanical seals that prevent back-pressure leaks caused by ambient temperature swings during container ocean shipping.
We offer three primary packaging options:
• Standard Bulk Packaging: 1 Pair per PE polybag, 10–12 Pairs per master corrugated shipping carton (Cost-effective for hospital contracts).
• Retail Color Box: Custom printed 4-color offset box with barcode, EAN/UPC, and hanging tabs (Ideal for pharmacy and retail medical supply store shelves).
• Mail-Order Packaging: Compact 200# drop-tested mailer box designed for direct-to-consumer e-commerce fulfillment.
Yes. All soft foam liners, tricot fabrics, and TPU air cells pass ISO 10993-5 (Cytotoxicity) and ISO 10993-10 (Irritation and Skin Sensitization) testing. Liners are latex-free and treated with hypoallergenic finishings to minimize dermatological reactions during multi-week wear cycles.
Sample orders (including customized branding samples) ship within 5 to 7 business days. Standard production orders (20ft to 40ft HQ containers) are completed within 30 to 35 calendar days following deposit confirmation and artwork approval. Expedited production lanes are available for contracted volume partners.
All our short pneumatic walker boots are 100% ambidextrous, designed to fit either the left or right foot seamlessly. This ambidextrous engineering allows distributors and hospitals to reduce stock SKU count by 50%, significantly optimizing inventory holding costs.
We supply a comprehensive regulatory dossier with every commercial order, including: CE Declaration of Conformity (DoC), ISO 13485 Certificate, FDA Device Registration & Listing details, Material Safety Data Sheets (MSDS), Biocompatibility Test Reports, and Certificate of Analysis (CoA) per batch.
Accelerate Your Orthopedic Supply Chain
Partner with a trusted CE, FDA, and ISO 13485 certified OEM/ODM short pneumatic walker boot factory. Request a direct factory quotation, custom prototype sample, or full technical catalog today.
